Wichard Self-Locking D Shackle – Diameter 8mm – 5/16″ [1204W]

Wichard Self-Locking D Shackle – Diameter 8mm – 5/16″ [1204W]

Original price was: $31.67.Current price is: $24.12.

43 in stock

SKU: JRVG401848654141 Category:

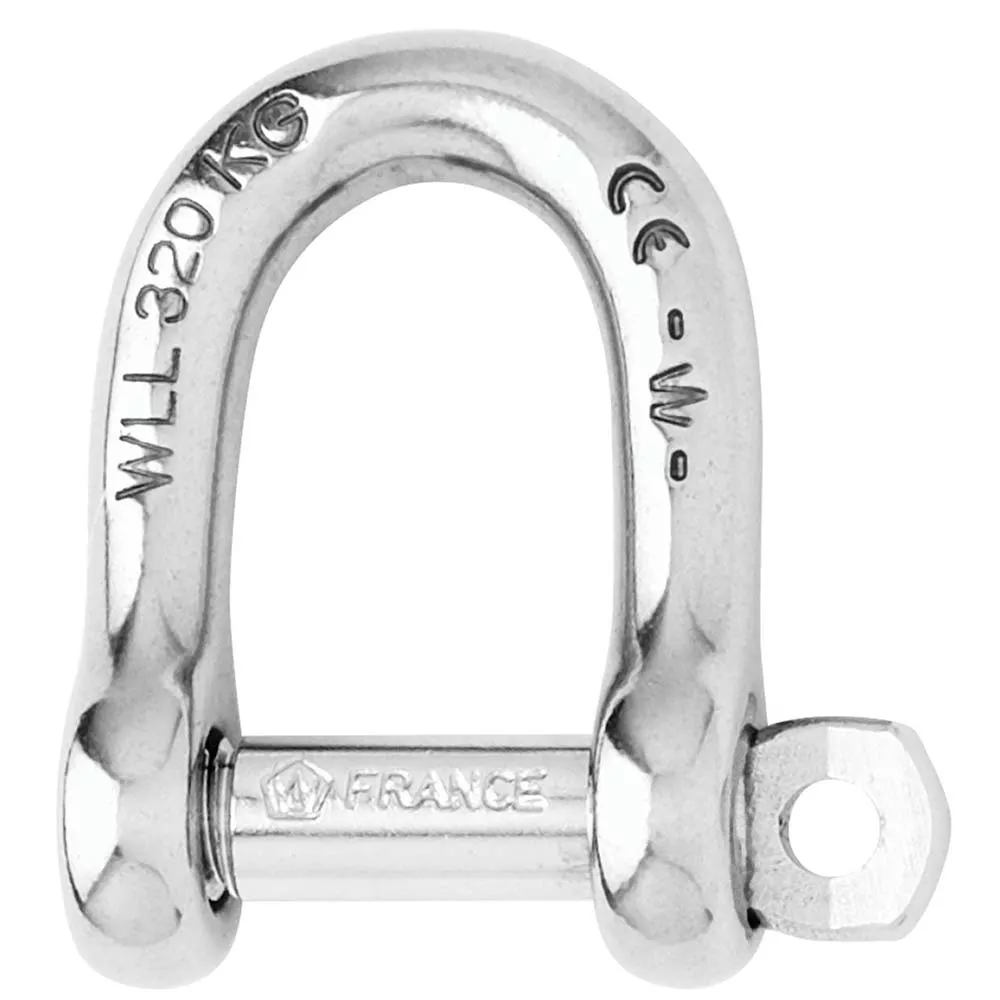

Self-Locking D Shackle – Diameter 8mm – 5/16″

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.121

Dimensions (see 2nd image):

  • A (inch) 1-1/32″
  • B (inch) 5/8″
  • C (inch) 5/16″
  • D (inch) 5/8″
  • D diameter (inch) 5/16″
  • E (inch) 9/32″
  • F (inch) 1-49/64″
  • G (inch) 1-39/64″
