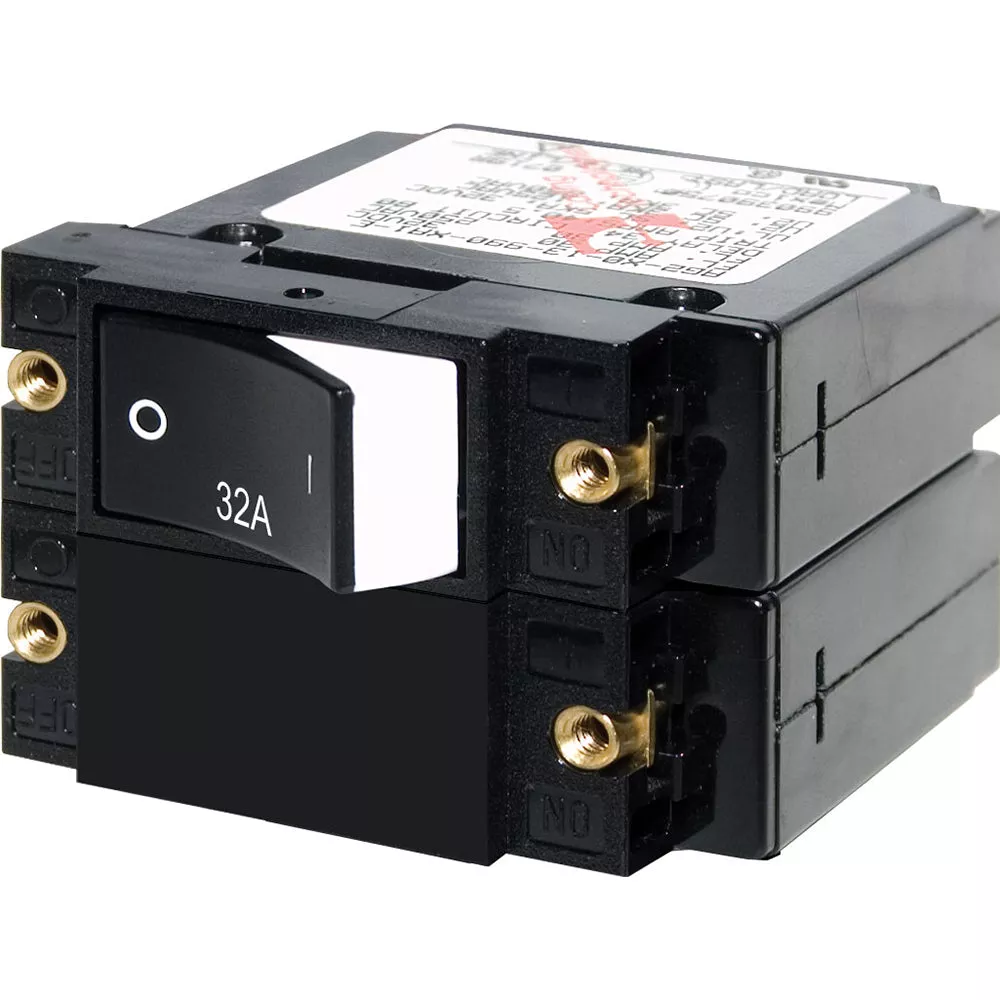

Blue Sea 7575 A-Series Raised Rocker Circuit Breaker – Double Pole – 32A [7575]

A-Series Raised Rocker Circuit Breaker – Double Pole – 32A

Features:

• Color actuator indicates “OFF” position
• “Trip Free” design cannot be held “ON” during a fault current condition
• International ON/OFF symbols support vertical or horizontal mounting

Specifications:

• Amperage: 32A AC / 32A DC
• Actuator Style: Raised Rocker
• Poles: 2
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Circuit Breaker Type: Magnetic Hydraulic – trip free
• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC
• Minimum Operating Temperature: -40 C
• Maximum Operating Temperature: 85 C
• Mounting Screw: 6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Screw Terminal Torque: 14 in-lb (1.58 Nm)
• Switching Cycles: 10000
• Terminal Screw: 10-32 Stainless Steel
• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 32a
• Box Dimensions: 2″H x 3″W x 5″L WT: 0.35 lbs
• UPC: 632085075750
